Amplaer red Elektrek

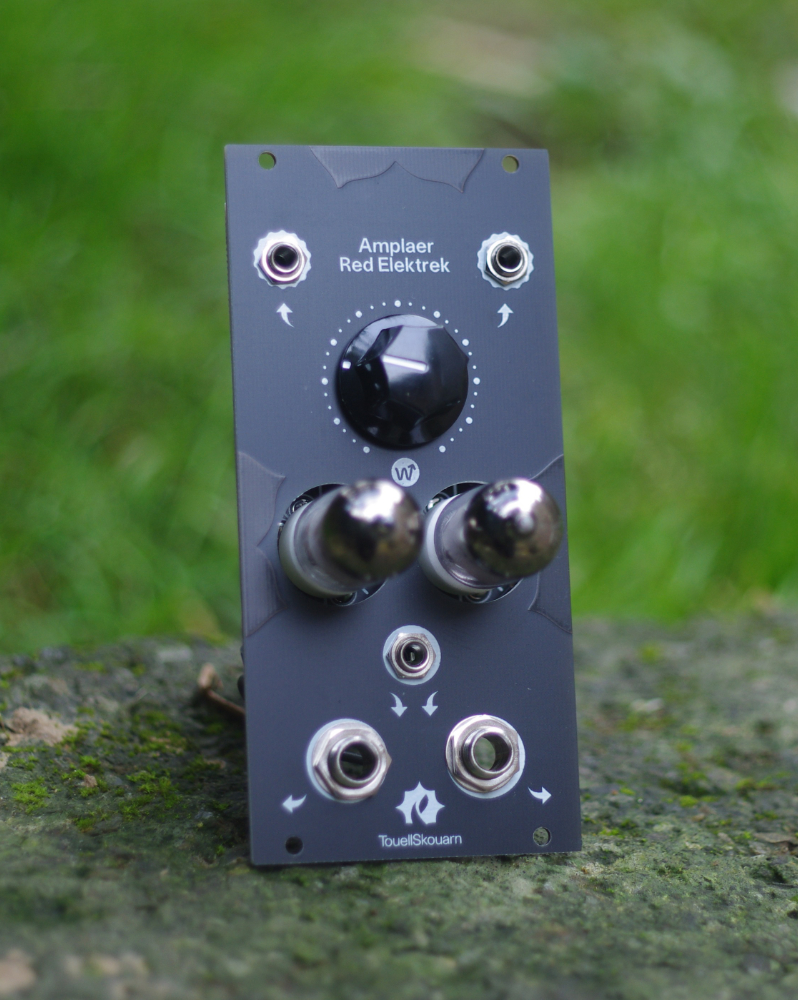

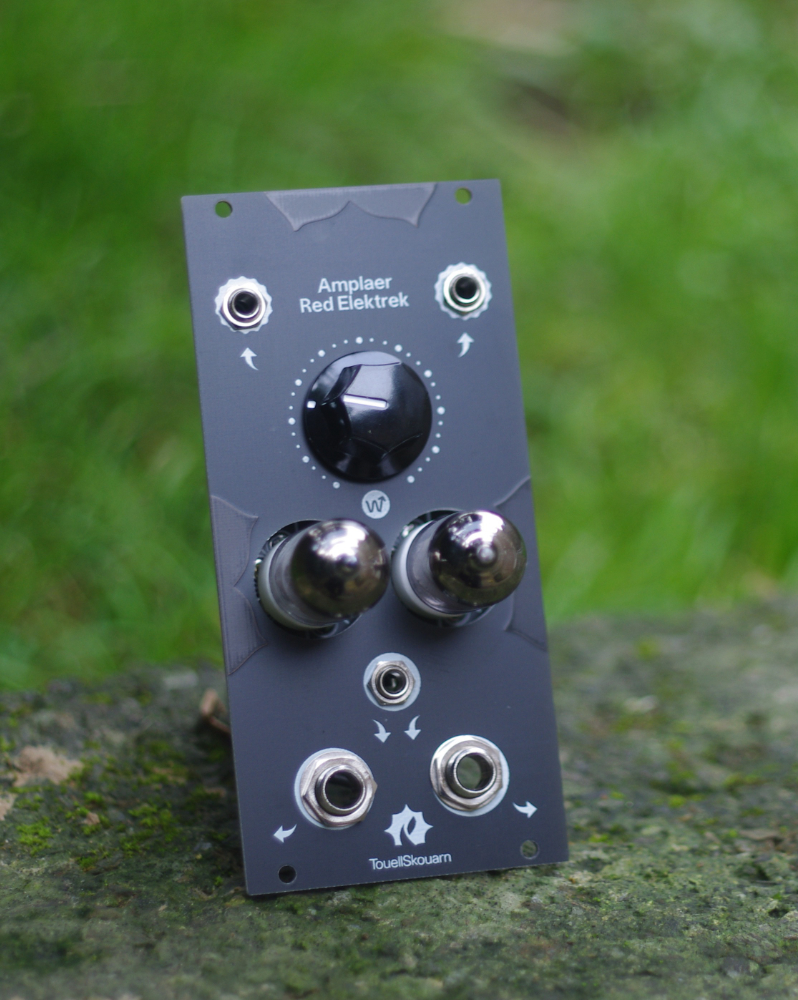

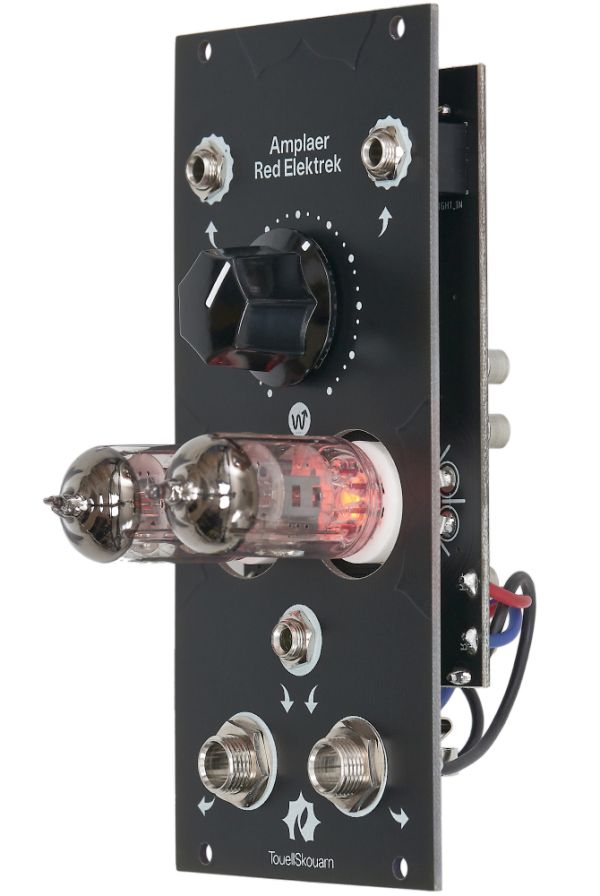

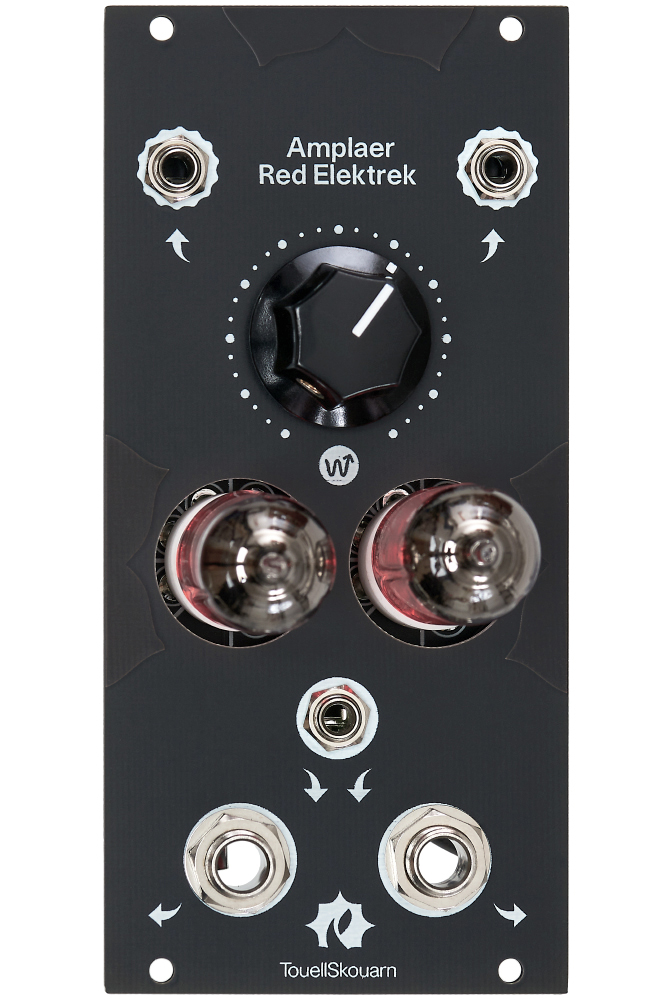

Tube Headphone Amp

Stereo Tube Headphone Amplifier, with balanced Jack 6,35 output. High quality components. Made in France

12HP / black pcb panel

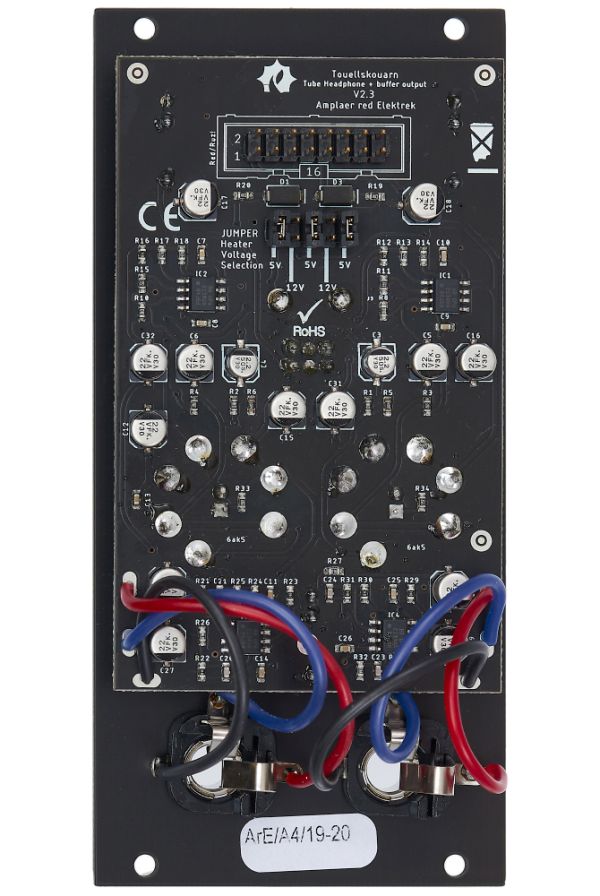

12V and 5v compatible (selectable heaters voltage via jumpers)
Jacks : Inputs X2 , Balanced Output x2, stereo headphone output
Tube sound
Compatible with 6j1P, 5654, 6AK5, EF95 tubes
Hand-wired, Boutique quality, Made in Plougastel-Daoulas and Landerneau.
Stupid Breton name

Details

Very simple but effective stereo headphone tube amplifier, with balanced output. Input right is normal to left input so it can be used to monitor mono or stereo channels. Balanced output with very low impedance. Compatible with 6j1P, 5654, 6AK5, EF95 tubes. Built with High Performance Audio Operational Amplifiers OPA2134 and NOS OTK Ukrainian Tubes.

Technical

Size:

12HP
Face plate material:

Black pcb panel
+12v:

40mA (+ 350mA if 12V heaters)
-12v:

35mA
+5v:

350 mA (0mA if 12V heaters)

User Manual
