Blokañ

Real Tube Ring Modulator

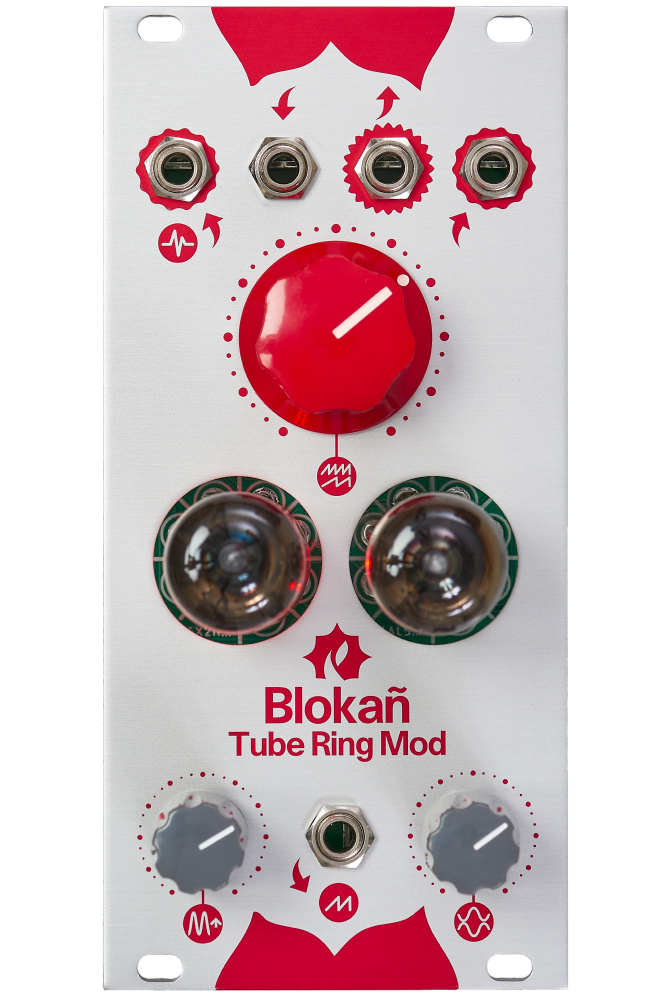

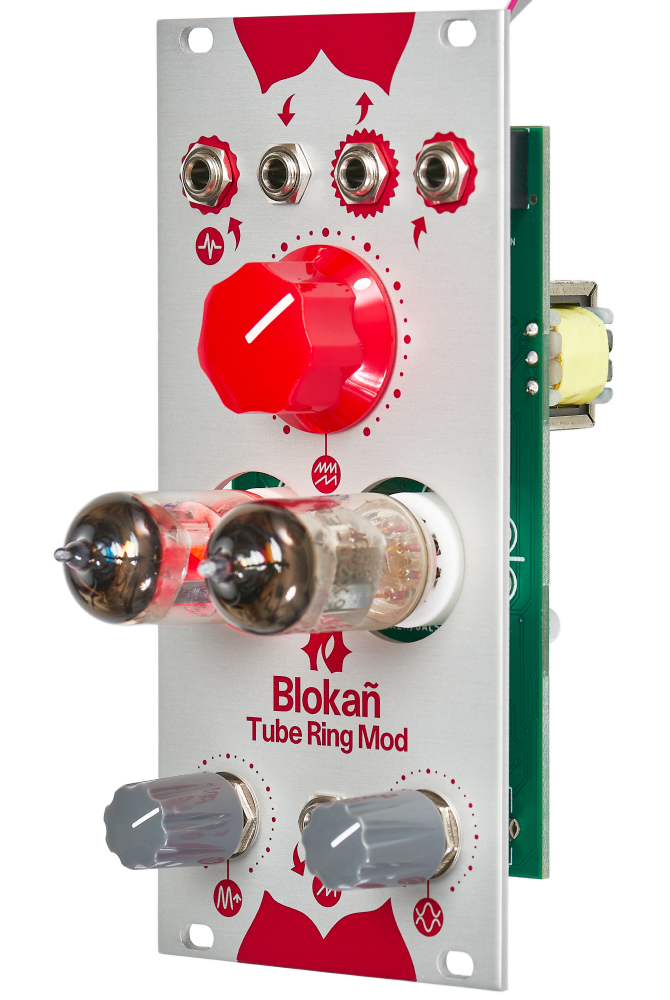

Blokañ is a new ring modulator module for Eurorack that is based on tubes and transformers.
  • 14HP / anodized aluminium panel / Red painted
  • Jacks : Input, Output, CV Input, Ext Carrier Input, VCO SAW Output
  • Diode Tubes
  • Compatible with 6AL5, EB91, EAA91 tubes
  • Hand-wired, Boutique quality, Made in Plougastel-Daoulas.
  • Not that Stupid Breton name

Details

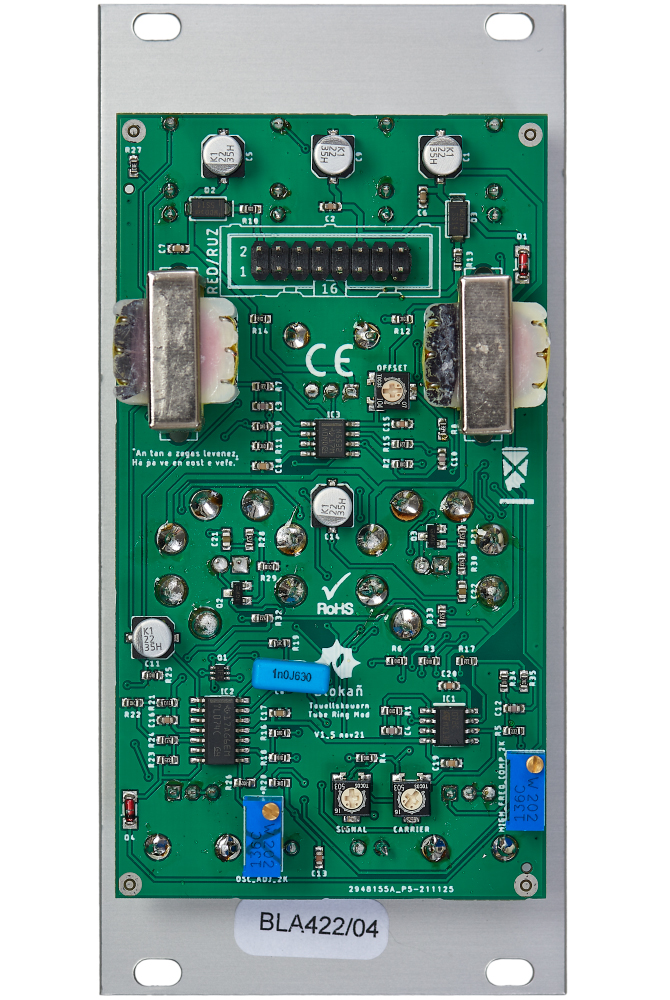

Blokañ is built around on the classic diode ring, where the diodes are tube based. The module uses a built in carrier signal (saw wave) VCO (V/Oct) with is own output. In use the tube ring mod acts like a real ringmod with the benefit of sounding different from others due to the tubes usage, but it can be also on the noisy side, as the diodes in the tube can’t be matched, and it can leak a little the carrier wave, "it's not a bug, it's a feature “.

Technical

  • Size:
    12hp
  • Face plate material:
    2mm anodised Aluminium
  • +12v:
    18mA
  • -12v:
    18mA
  • +5v:
    600mA

User Manual

User Manual
