Meskañ

4X mixer, 1U

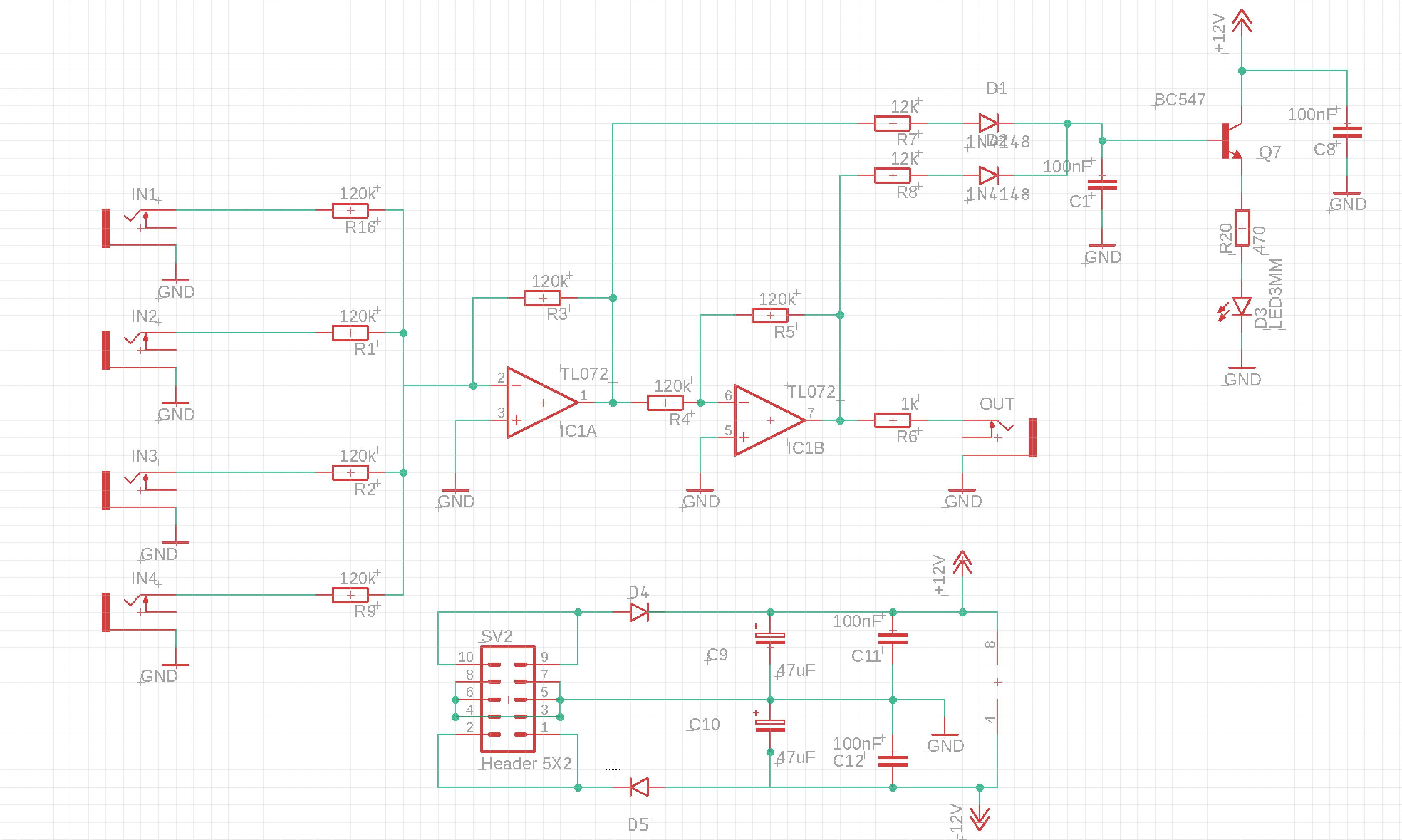

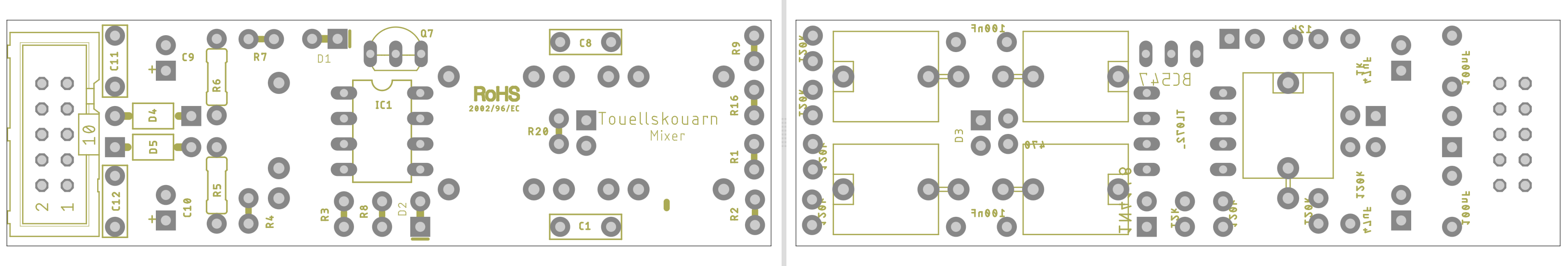

Simple 4X DC/AC mixer, 1U.
All Capacitors >25v

R1   120k          6MM-EU1    6mm Resistors
R2   120k          6MM-EU1    6mm Resistors
R3   120k          6MM-EU1    6mm Resistors
R4   120k          6MM-EU1    6mm Resistors
R5   120k          6MM-EU1    6mm Resistors
R6   1k            6MM-EU1    6mm Resistors
R7   12k           6MM-EU1    6mm Resistors
R8   12k           6MM-EU1    6mm Resistors
R9   120k          6MM-EU1    6mm Resistors
R16  120k          6MM-EU1    6mm Resistors
R20  470           6MM-EU1    6mm Resistors

D1   1N4148        DO41       Rectifier Diodes
D2   1N4148        DO41       Rectifier Diodes

D4   1N4001        DO41       Rectifier Diodes
D5   1N4001        DO41       Rectifier Diodes

C1   100nF         072X025    Film Capacitor
C8   100nF         072X025    Film Capacitor
C11  100nF         072X025    Film Capacitor
C12  100nF         072X025    Film Capacitor
C9   47uF          063_025    Electrolytic Capacitor
C10  47uF          063_025    Electrolytic Capacitor

Q7   BC547         TO92-CBE   NPN Transistror

D3   LED3MM        LED3MM     Red led

IC1  TL072         DIL08      Generic Dual Op Amp

IN1  THONKICONN    WQP518MA   Socket for Eurorack modular synths
IN2  THONKICONN    WQP518MA   Socket for Eurorack modular synths
IN3  THONKICONN    WQP518MA   Socket for Eurorack modular synths
IN4  THONKICONN    WQP518MA   Socket for Eurorack modular synths
OUT  THONKICONN    WQP518MA   Socket for Eurorack modular synths

Technical

Size:

1U
Face plate material:

Red pcb Panel
+12v:

10mA
-12v:

10mA

User Manual
